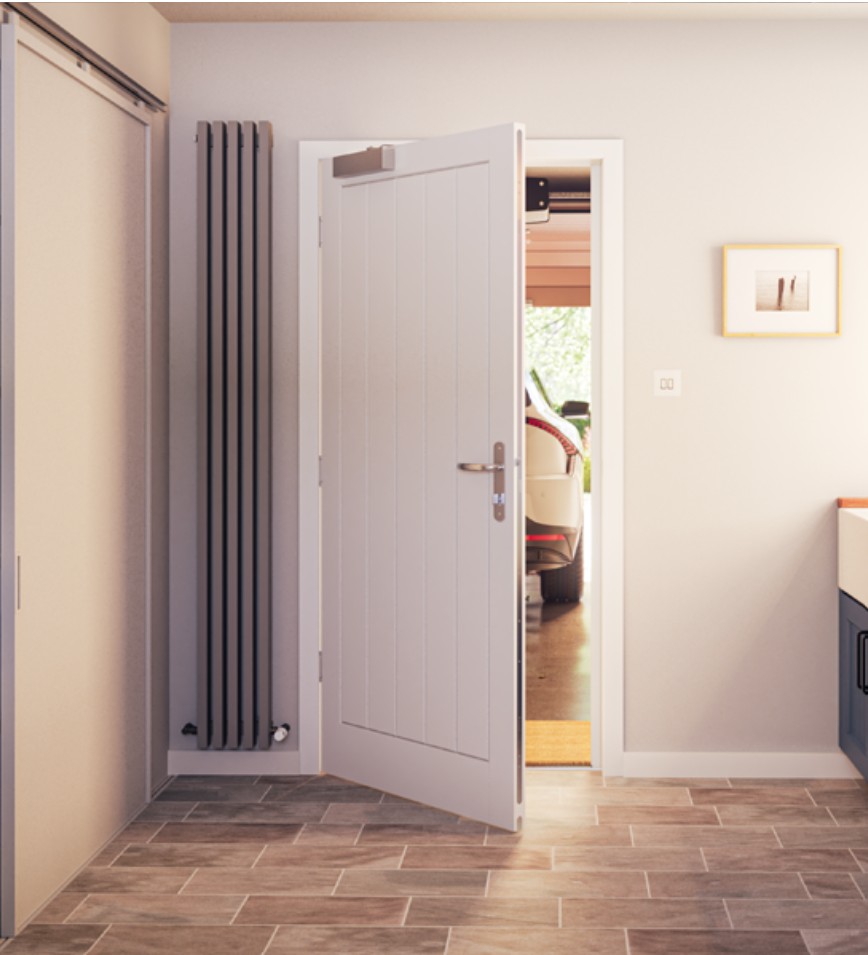

Integral Garage Doorsets provide a practical solution for entrances to the home from the garage, providing performance in fire safety and security. PAS 24 tested and certified by Certsecure, complying with security standards in Part Q.
Integral Garage Doorsets provide a practical, certified solution for the entrance to the home from the garage — a critical fire compartmentation point. Complying with Building Regulations Part Q and PAS 24, these doorsets are Secured by Design approved.
Available in FD30 (44mm) with FD60 options, in a variety of moulded, flush veneer and paint grade designs. Door widths of 838mm, 864mm, 914mm and 926mm as standard, with special sizes on request.
Every Integral Garage Doorset is engineered and supplied to the highest fire safety and security standards.
Supplied in a variety of FD30 (44mm thick) fire door options. Standard widths: 838mm, 864mm, 914mm and 926mm. Special sizes available on request. All doorsets carry full Secured by Design approval.
FD30 doorsets supplied with engineered softwood frames. FD60 doorsets supplied with hardwood frames. Finish variations include raw timber, base stain and primed — contact our team for your required specification.
Secured by Design three point espagnolette locking system with anti-bump cylinder. Usable in solid or split spindle modes. Fitted with an escape (thumb turn) cylinder. 3* high security cylinder with anti-pick, anti-drill, anti-bump and sacrificial snap section.
Acoustic, smoke and draught seal together with intumescent seals incorporated at the frame head and jambs. Complies with Part E acoustic requirements.
Self-levelling drop seal fitted at the bottom of the door as standard. Automatically lifts clear of the floor as the door is opened by a few millimetres.
Aluminium threshold plate supplied as standard and must be fitted for compliance. An optional hardwood threshold is available on request.
Doors are hung on three compatible Grade 13 stainless steel security hinges with intumescent protection. CE marked and tested.
Assa Abloy DC300A V-arm or DC500A slide arm door closer, silver or stainless steel finish. V-arm silver is the default. All closers tested and CE marked to EN 1154. Supplied loose for fitting on site.
All doorsets supplied with a 3 point espagnolette lock with an anti-bump EuroProfile lock cylinder incorporating an internal thumb turn.
3× Grade 13, CE marked Stainless Steel butt hinges with intumescent protection.
Lever handles available in chrome (or optional silver). Fitted for use in either solid or split spindle modes.
Variable height dropseal concealed within the base of the door leaf. Higher efficiency mechanism lifts the seal clear of the floor as soon as the door is opened by a few millimetres. Self-levelling when fitted with the aluminium threshold.
Extruded aluminium threshold supplied as standard — must be fitted for compliance. Optional hardwood threshold available on request.
Smoke and acoustic seal fitted into timber frames. Compliant with Part E acoustic requirements.
FD30: 10mm × 4mm strip and 15mm × 4mm strip incorporated at frame head and jambs.
Assa Abloy DC500A Cam-action Slide Arm — variable closing force EN 1-4, certified by Certifire under CFS096, CE marked to EN 1154. Silver or stainless steel.
Assa Abloy DC300A Rack & Pinion V-Arm — variable closing force EN 2-4, certified by Certifire under CFS098, CE marked to EN 1154. Silver or stainless steel.
Both supplied loose for fitting on site.
| FD30 Leaf Thickness | 44mm |
| FD60 Option | Available |
| FD30 Frame | Engineered Softwood |
| FD60 Frame | Hardwood |
| Standard Widths | 838 / 864 / 914 / 926mm |
| Intumescent Seal | 10mm×4mm + 15mm×4mm |
| Hinge Standard | CE Grade 13 SS (×3) |
| Lock | 3-Point Espagnolette |
| Cylinder | 3* Anti-Bump EuroProfile |
| Certification | PAS 24 / Secured by Design |
| Guarantee | 10 Years |

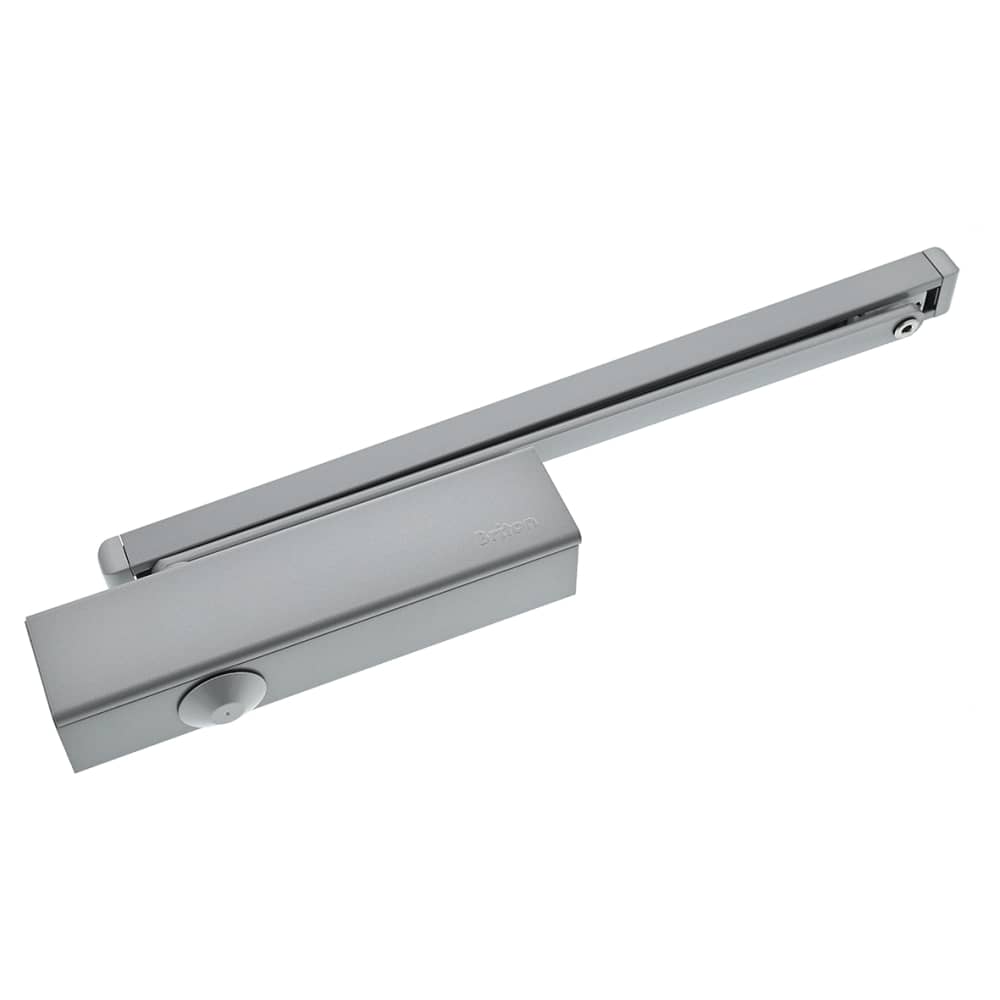

Side Arm Door Closer
V-Arm Door Closer
Building Regulations Part M demand specific dimensions for doors and corridors. Clear opening dimensions based on 18mm stop, 7mm hinge throw and 3mm edge gap.
| Door Width | Clear Opening (FD30) | Overall Frame Size | Minimum Opening |
|---|---|---|---|
| 838mm × 1980mm | 46mm clearance — 800mm | 900mm × 2048mm | 900mm × 2048mm |
| 864mm × 1980mm | 46mm clearance — 800mm | 900mm × 2048mm | 916mm × 2048mm |
| 914mm × 1980mm | 46mm clearance — 775mm | 923mm × 2048mm | 923mm × 2048mm |
| 926mm × 2040mm | 46mm clearance — 861mm | 900mm × 2109mm | 900mm × 2109mm |
* All dimensions in millimetres. Based on 18mm stop, 7mm hinge throw and 3mm edge gap. Special sizes available on request.
A wide range of design options for our doorsets, including moulded, flush veneer and paint grade styles.
Moulded Door Designs
Flush Door Designs
Veneer
Laminate
Paint Grade
An Integral Garage Doorset is a fire-rated doorset fitted between a garage and the interior of a home. It provides critical fire compartmentation and security at this high-risk boundary point. Our doorsets are PAS 24 tested, Part Q compliant, and carry full Secured by Design approval.
Yes. Building Regulations require a minimum FD30 fire door between an integral garage and the living accommodation. Our doorsets are supplied as FD30 (44mm) as standard, with FD60 options available. All are Certsecure certified and Secured by Design approved.
Standard door widths are 838mm, 864mm, 914mm and 926mm. Special sizes are available upon request. All widths are manufactured to comply with Building Regulations Part M requirements for wheelchair and pram access.
All doorsets include a Secured by Design three-point espagnolette locking system complete with a 3* anti-bump EuroProfile lock cylinder incorporating an internal thumb turn. The cylinder features anti-pick, anti-drill, anti-bump and a sacrificial snap section. Handles are available in chrome or silver.
Door closers are available as an option and supplied loose for fitting on site. Options include the Assa Abloy DC500A Cam-action Slide Arm and DC300A Rack and Pinion V-Arm, both certified by Certifire and CE marked to EN 1154. The V-arm in silver is the default option.
Our technical team will guide you through fire rating selection, design options, ironmongery and Part Q compliance.
